Balloon Adhesive Dot Labeling Machine

As Junssen from China, we independently develop and produce the Balloon Adhesive Dot Labeling Machine, our high-speed hot melt dispensing equipment targeted at roll-type balloon sticky dots production. We fitted this machine with an automatic take-up winding structure, which lets the whole line keep running without frequent stops when finishing one roll of raw material. It runs steady with PID temperature control and accuratedispensing pump delivery, so every double-sided adhesive dot for party balloons stays uniform in size and leaves no sticky residue after peeling. The full roll-to-roll flow covers feeding, dot coating, cooling shaping and finished product winding, all finished in one continuous pass to output complete roll-packed glue dots directly.

Equipment structure

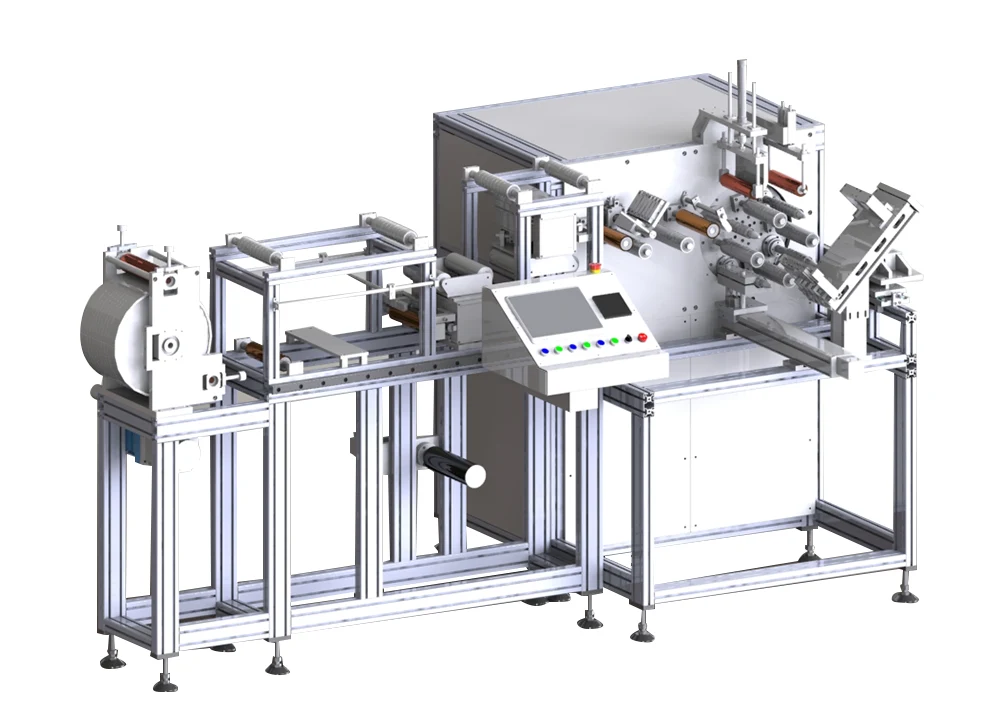

The roll-applied adhesive balloons are in form of continuous rolls. The length of single roll varies from several meters to hundreds of meters. They are mainly used in No-Residue Hot Melt Coaters and batch decoration projects, and can also be manually torn by end users as needed. The advantages of roll-packaged products are lower unit costs and better compatibility with automated production processes. Therefore, the structure of roll-packaged production equipment differs significantly from that of sheet-packaged equipment. It mainly consists of six modules: unwinding unit, coating unit, drying unit, compounding unit, cutting and forming unit, and winding unit. The functions and parameters of each module are as follows.

1. Unwinding and substrate bonding unit This unit is responsible for continuously and stably outputting the base material for making balloon adhesive dots from the roll, and completing the lamination of the upper and lower protective films during the process. It is equipped with an automatic tension control system to keep the base material flat during transmission, avoiding wrinkles or deviation that affect the forming quality of glue dots.

2. Coating unit As the core functional module of the whole machine, this unit is matched with the high-precision gear pump glue supply system and hot melt temperature control mechanism, which can output hot melt glue evenly according to the set dot spacing and size, forming regularly arranged dot-shaped glue spots on the exposed base material, ensuring that each glue dot has consistent glue volume and stable viscosity.

3. Cooling unit After the hot melt glue dots are coated, the base material enters this unit for rapid cooling and setting, so that the glue dots can quickly form a stable shape, avoid adhesion deformation caused by high temperature in the subsequent transmission process, and ensure that the glue dots have good removability and no residue after peeling.

4. Forming and cutting unit This unit cuts the continuously produced adhesive dot composite material according to the set width, trims the excess edge material, and completes the pre-slitting of the finished product roll, which lays a foundation for the subsequent finished product winding.

Automatic winding unit This unit is equipped with an automatic switching and material changing mechanism, which can complete the receiving and switching of finished rolls without stopping the machine, maintain the continuous high-speed operation of the whole production line, avoid the production stop caused by replacing finished rolls, effectively improve the overall production efficiency of the equipment, and finally output the finished roll-packed balloon adhesive dot products that meet the specifications.The Glue Dots Machine ensures continuous production and improves production efficiency.

Parameters

1. Unwinding and substrate bonding unit

2. Coating unit

3. Cooling uni

4. Forming and cutting unit

5. Automatic winding unit

Specification

Characteristics

This hot melt adhesive dot dispensing production equipment is designed for the production of double-sided glue dots for balloons. The running speed range of the equipment can be adjusted from 10 to 25 meters per minute. The thickness tolerance of the adhesive layer is precisely controlled to ensure that each glue dot is of uniform thickness. A fully automatic winding mechanism is provided as a companion, which can complete the packaging of the finished roll material in one go. The entire machine is equipped with a PID temperature control system. Even during long term continuous production without interruption, it can effectively prevent the problem of carbonization of the hot melt adhesive, and continuously maintain a high-speed and stable production line operation.

Usage Scenario

We have long-term cooperation with numerous festival decoration factories both at home and abroad. The majority of these factories have chosen our balloon glue dot labeling machine as their core production line equipment. A customer from Southeast Asia, who mainly deals in party supplies, purchased two of these machines to produce adhesive dots for party balloons.

This equipment is equipped with an uninterrupted winding and high-speed operation structure, which reduces the manual operation volume of the factory by more than half and significantly increases the daily output of double-sided glue dots. The party balloon-specific glue dots produced by the factory are in high demand at local chain supermarkets and offline party decoration stores. Compared to similar products produced by older coating equipment, our glue dots have the characteristic of no residual glue.

FAQ

Q1: What is the Balloon Adhesive Dot Labeling Machine used for?

The machine is mainly used for applying adhesive dot labels, glue dots, or small adhesive stickers onto balloons and other lightweight products with high positioning accuracy.

Q2: What types of balloons can this machine label?

It is suitable for different types of balloons, including latex balloons, foil balloons, decorative balloons, and other balloon products requiring adhesive dot application.

Q3: What are the advantages of using an automatic adhesive dot labeling machine?

The machine improves labeling speed, placement accuracy, and production consistency while reducing manual labor and material waste during large-scale balloon production.

Q4: Can the adhesive dot size and position be customized?

Yes, the adhesive dot size, labeling position, and machine parameters can be adjusted according to different balloon designs and production requirements.

Q5: Is this machine suitable for small-batch and mass production?

Yes, it can meet the needs of small customized orders as well as continuous mass production with stable and efficient operation.

Q6: What type of adhesive materials can be used with this machine?

The machine can work with various adhesive dot materials, including double-sided adhesive dots, glue dots, and customized adhesive labels according to application needs.

Q7: How does the machine ensure accurate adhesive dot placement?

It uses a precision feeding and positioning system to ensure consistent adhesive dot placement, improving product appearance and production quality.

Q8: Is the Balloon Adhesive Dot Labeling Machine easy to operate and maintain?

Yes, it features a user-friendly control system and simple maintenance requirements, allowing operators to quickly set up and maintain stable production.
