Pre-gelled Tab ECG Electrode Production Machine

Junssen is a supplier and manufacturer specializing in the production of label electrode sheet equipment.The pre-gelled Tab ECG Electrode Production Machine can be selected as either a large or small model based on the production volume requirements of the customers. The finished hydrogel of this equipment is laminated with conductive PET online. The speed of the round knife die-cutting can be adjusted from 0 to 20 meters.

Specification

Main features

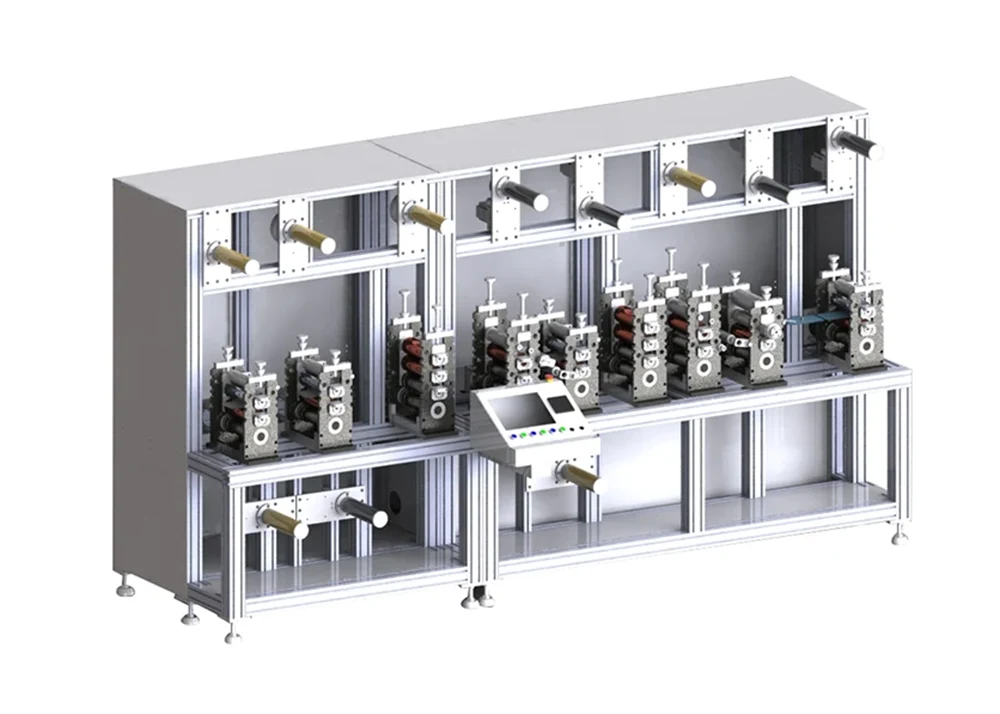

The Disposable Tab Electrode Manufacturing Machine uses online gluing and curing. The gluing thickness can be adjusted. After curing, it is directly die-cut into shape. The servo motor collects the waste. The operation is simple. The glue pump has an automatic cleaning function. The glue does not come into contact with metal, avoiding the possibility of a reaction between the glue and metal. Automatic tension control is adopted for unwinding materials to ensure stable feeding of each layer of materials. The whole machine is made of stainless steel structure, which has good anti-rust and anti-corrosion performance and meets the hygienic standards of medical consumables production. It has high production compatibility, can adapt to processing of different specifications of disposable tab ECG electrodes, and can complete rapid adjustment when switching product models.

Advantage

1. Fully automatic integrated production, cut labor cost & stabilize quality

2. Stable long-run operation with low failure & maintenance cost

3. Flexible customization & quick specification switching

4. Compliant medical-grade hygienic production, high finished yield

5. 5. Integrated all-in-one structure saves workshop space & logistics cost

Usage

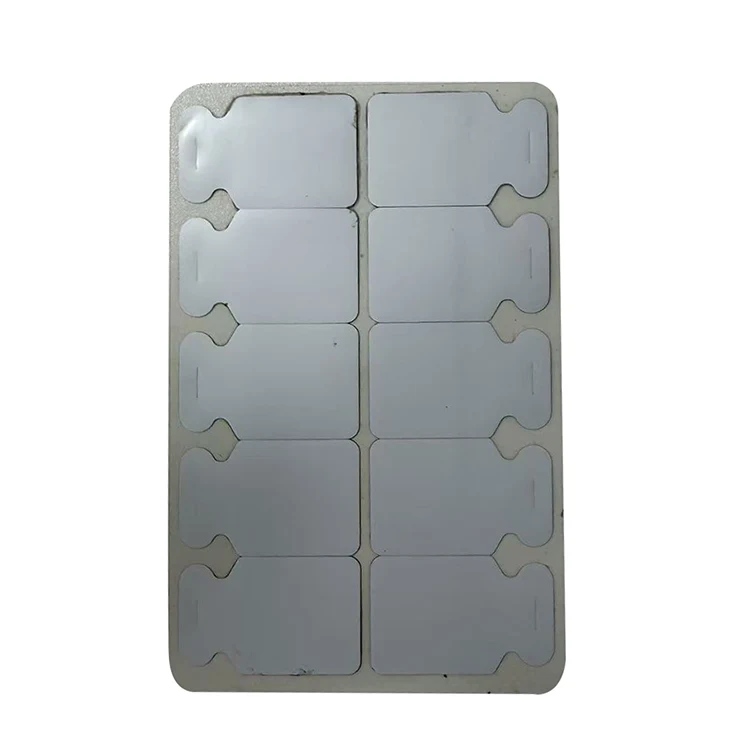

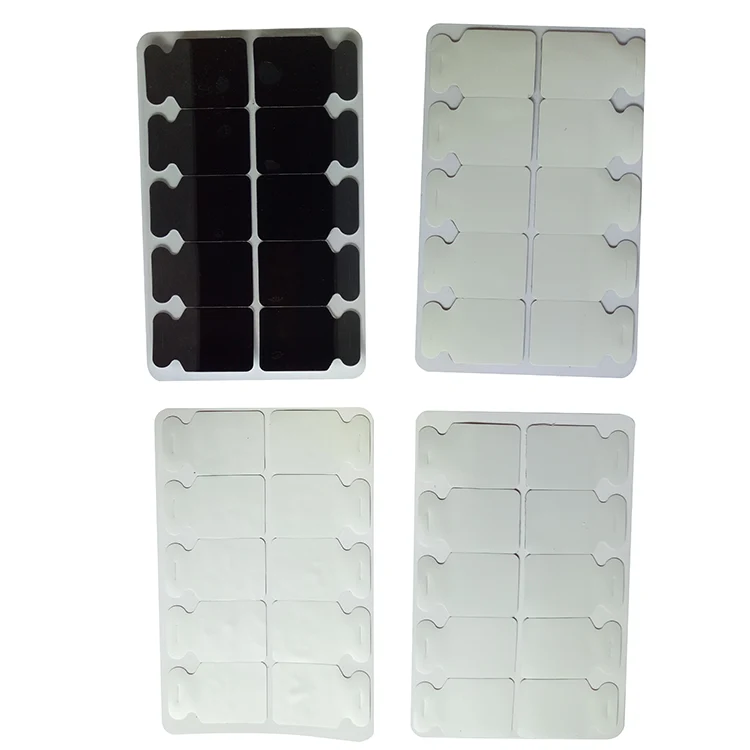

This equipment is a machine specifically designed for producing Disposable Tab Electrodes. It is most commonly used in hospitals for heart monitoring, capturing heart signals, and is applied in the rehabilitation field. There are also some specially customized patch-type electrodes used in long-term medical monitoring.

FAQ

1. What is a Pre-gelled Tab ECG Electrode Production Machine used for?

A Pre-gelled Tab ECG Electrode Production Machine is designed for the automatic manufacturing of pre-gelled tab ECG electrodes used in medical monitoring applications. It integrates material feeding, gel application, cutting, and assembly processes to improve production efficiency and product consistency.

2. What types of materials can be processed by this equipment?

The machine is suitable for processing common ECG electrode materials, including conductive gel, foam or non-woven substrates, conductive films, adhesive layers, and tab components. Material compatibility can be adjusted according to different product requirements.

3. How can this machine improve ECG electrode production efficiency?

The equipment adopts an automated production process to reduce manual operations, improve processing accuracy, and maintain stable output. It helps manufacturers increase production capacity while reducing material waste and labor costs.

4. Can the equipment produce different sizes and designs of tab electrodes?

Yes. The machine can be customized according to different electrode structures, sizes, and production requirements. By adjusting molds and related components, it can support various tab ECG electrode designs.

5. Is the machine easy to operate and maintain?

Yes. The equipment is designed with a simple operating system and reliable mechanical structure, making daily operation, cleaning, and maintenance more convenient. Proper maintenance helps ensure stable performance and longer service life.

6. Does Junssen provide customization and after-sales support?

Yes. Junssen provides customized production solutions based on customers' product specifications and capacity requirements, along with technical guidance, installation support, and after-sales service to ensure smooth equipment operation.
