Vertical Electrosurgical Grounding Pad Production Machine

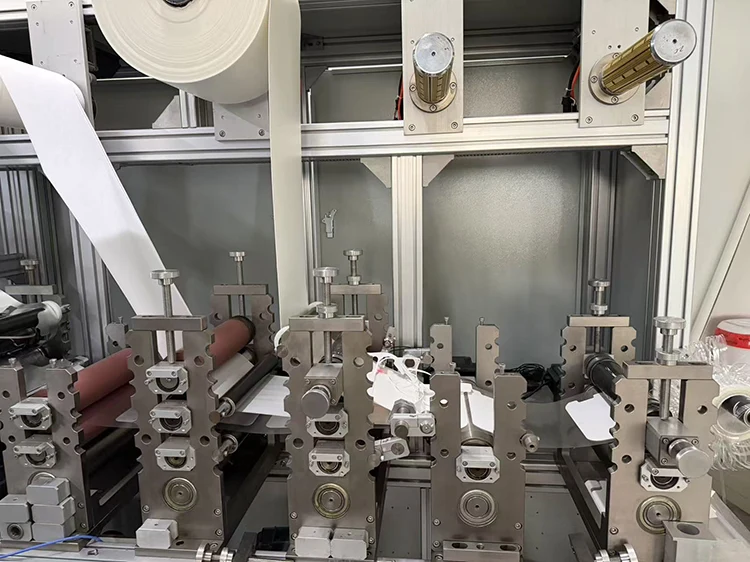

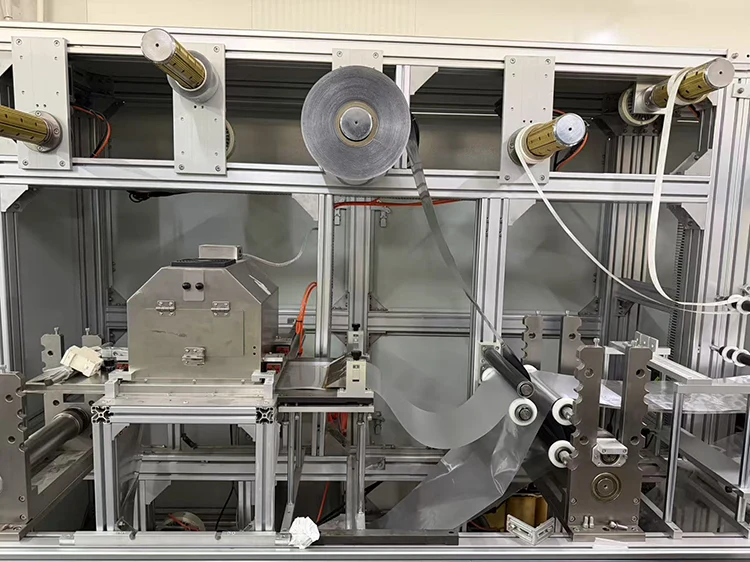

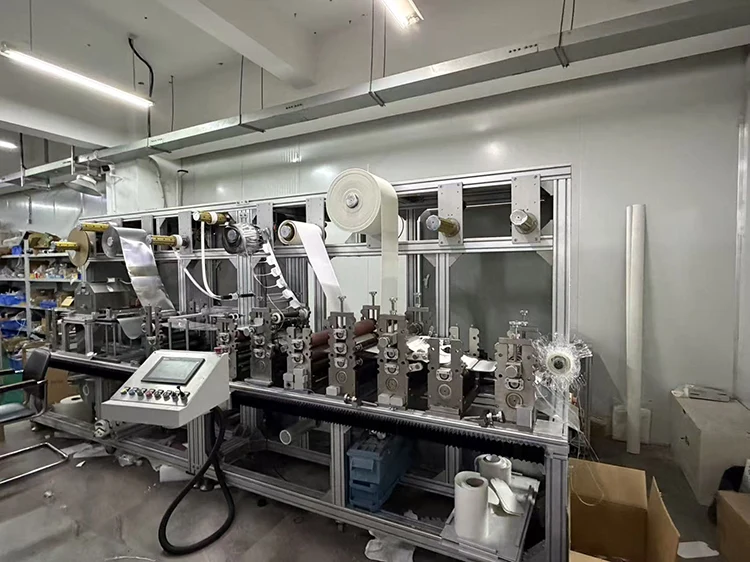

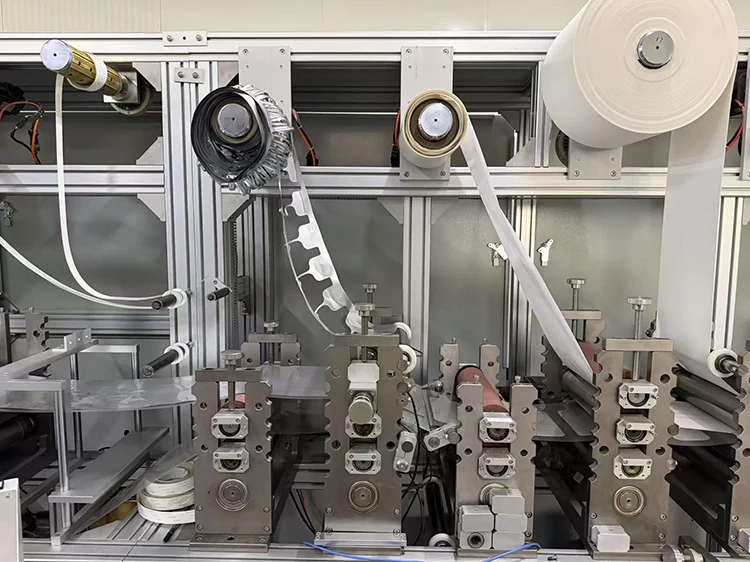

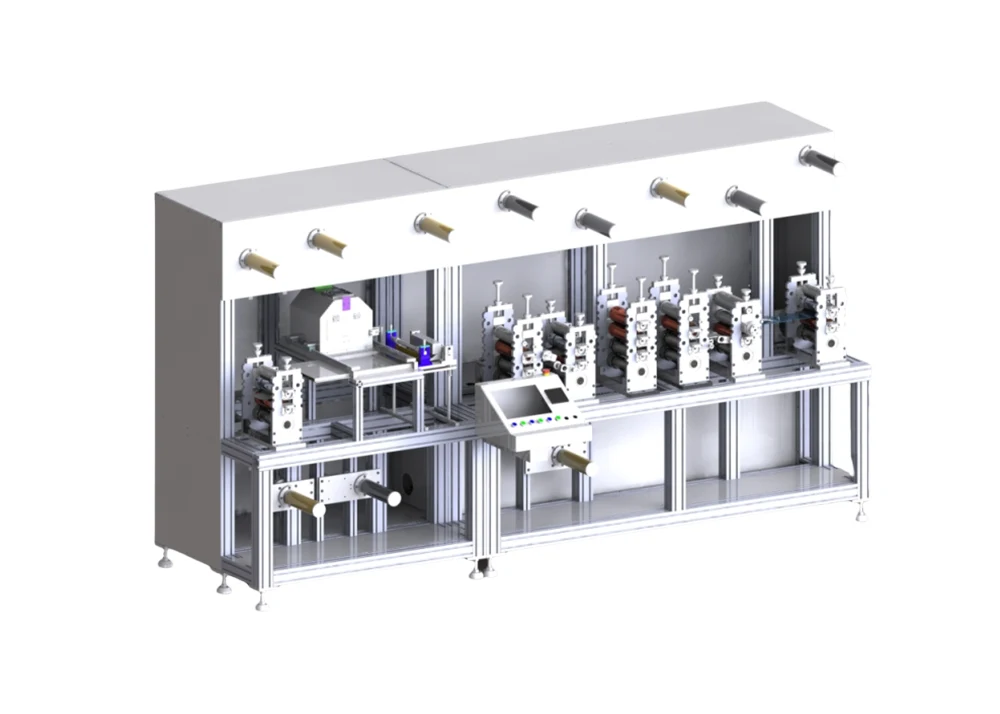

Junssen is a domestic professional manufacturer and supplier of complete sets of equipment for Vertical Electrosurgical Grounding Pad Production Machine. The equipment includes a gluing mechanism, UV curing mechanism, laminating mechanism, die-cutting mechanism, waste collection mechanism, feeding mechanism, and is equipped with a full servo motor configuration. It also features a movable operation panel.

Product Introduction

Our Electrosurgical Grounding Pad is soft and resilient, and is used during surgery to connect the complete current circuit.
The pad has excellent flexibility and fits comfortably on any part of the patient's body. The current generated during surgical cutting and burning operations will flow back to the electrosurgical unit through the grounding pad electrodes and wires, avoiding injury to the patient.
The product is of high quality, available in two specifications: a whole-piece model and a split-piece model. It can be matched with all electrosurgical equipment on the market, and all the safety and biocompatibility testing certifications are complete.
The whole-piece model has a single metal conductive layer inside, which evenly collects and conducts the current; the split-piece model has a double-sided leakage prevention design, with the current divided and conducted to both sides of the conductive edges, resulting in a higher safety factor. Even if one side of the conductive edge fails, the other side can still conduct the current normally, making the surgical use more reliable.

Specification

Production Principle

The advantages of online gluing are its simple structure and low cost. It is suitable for coating a gluing layer with a thickness of 0.5-0.8mm. After gluing, it can be directly subjected to ultraviolet curing. The power of the ultraviolet lamp can be adjusted continuously according to different formulations of the hydrogel. The coated substrate and release paper are combined into one, and the product is cut according to the shape. Then, it is asynchronously transferred to the release film to cover the foam and undergo final cutting.

This process achieves accurate control of glue layer thickness and curing degree through the PLC control system, ensuring consistent conductive performance and adhesive force of the hydrogel layer of the elongated return pad in mass production. The whole production flow completes all core procedures on one integrated production line, which avoids the dimensional deviation caused by positioning errors in multiple transfers, and ensures that the size and shape of each finished product meet the design requirements of elongated specifications.

Application

1. Applicable Product Types

Main product: Electrosurgical Dispersive Electrode (also named ESU electrode pad, grounding electrode pad, neutral plate, patient pad, dispersion electrode)

Optional production: Vertical Return Electrode, Pediatric Vertical Hydrogel Return Electrode, elongated return pads

2. One-stop Supply Support

Supply full sets of production machines and matching raw hydrogel materials at favorable prices

Provide customized hydrogel formula development service to fit various production processes and application scenarios

Help clients expand product lines rapidly to satisfy diversified market demands for different return pad specifications

3. Flexible Factory Layout Matching & Complete After-sales Engineering Service

The production line can be seamlessly docked with customers’existing workshop layout

Professional engineering team provides on-site installation, equipment commissioning and operator training

Guarantee the machine quickly reaches stable mass production of qualified elongated return pads

4. Application Scenarios of Elongated Return Pads

A.Medical cosmetic postoperative care

Suitable for recovery after laser resurfacing, microneedling, chemical peeling and other cosmetic dermatology treatments. The pad fits facial & body curved skin tightly, keeps moist environment for damaged skin, relieves inflammation and discomfort, speeds up tissue repair.

B. Physiotherapy for muscle & joint injuries

Perfect for long curved body parts like calves, waists and necks; maintains lasting skin contact and stably releases active care ingredients.

C. Daily household skincare

Ideal for targeted long-strip skin hydration and soothing care for local body areas.

FAQ

Q1.What is the function of the Elongated Return Pad?

It forms a complete current circuit, safely conducting high-frequency current back to the electrosurgical unit; the large contact surface evenly disperses the current density, significantly reducing the risk of skin burns during cutting and coagulation during the operation.

Q2.What medical products can this device produce?

This device can automatically produce single-pole, double-pole, vertical, horizontal, and fully enclosed electrosurgical negative electrode plates.

Q3.What is the production capacity per minute?

10-30 psc, depending on the product.

Q4.What is the human-machine interface system?

Device parameter settings and operating system

Q5.Do you provide the hydrogel formula?

Yes. We can provide Hydrogels Formulation

Q6. Can the equipment be adjusted to produce elongated return pads of different sizes?

Yes, the production size of the equipment can be flexibly adjusted through the PLC control system, and we can also customize the equipment structure according to your maximum and minimum product size requirements in advance to meet your diversified production needs.

Q7. What after-sales service do you provide?

We provide one-year free warranty for the whole equipment, and supply spare parts at cost price for maintenance after the warranty period. Our engineering team can respond to your fault feedback within 24 hours.
