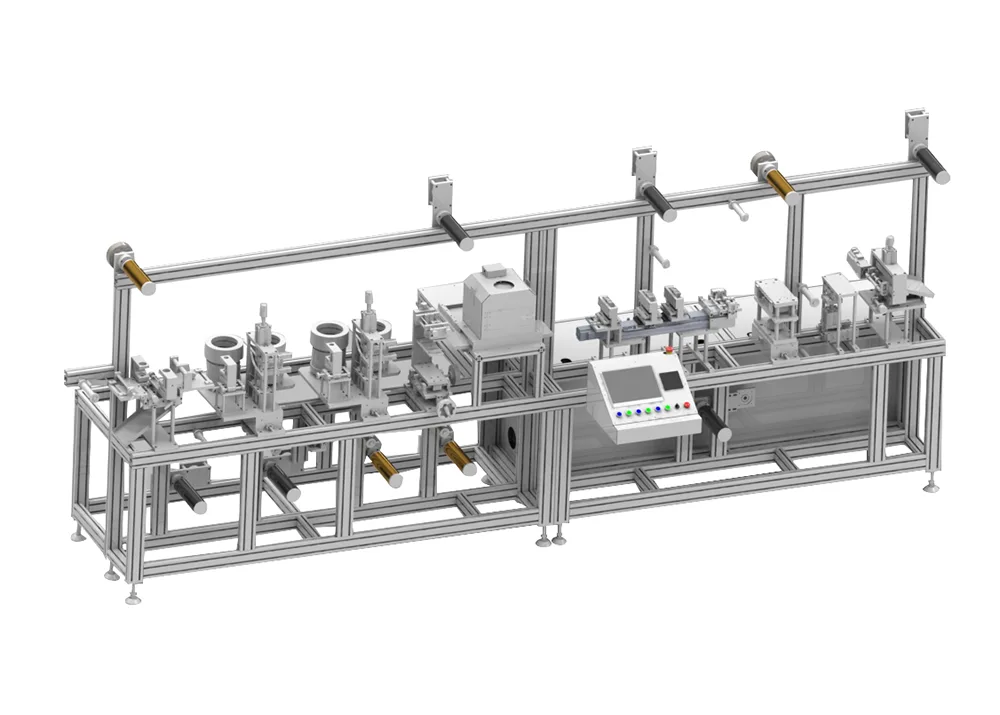

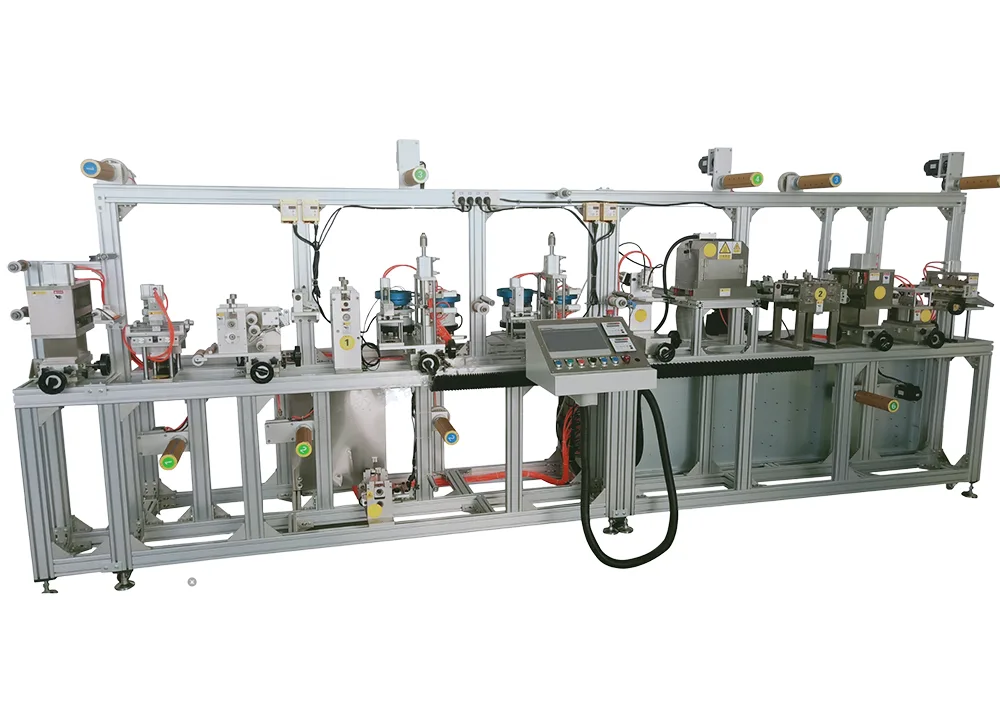

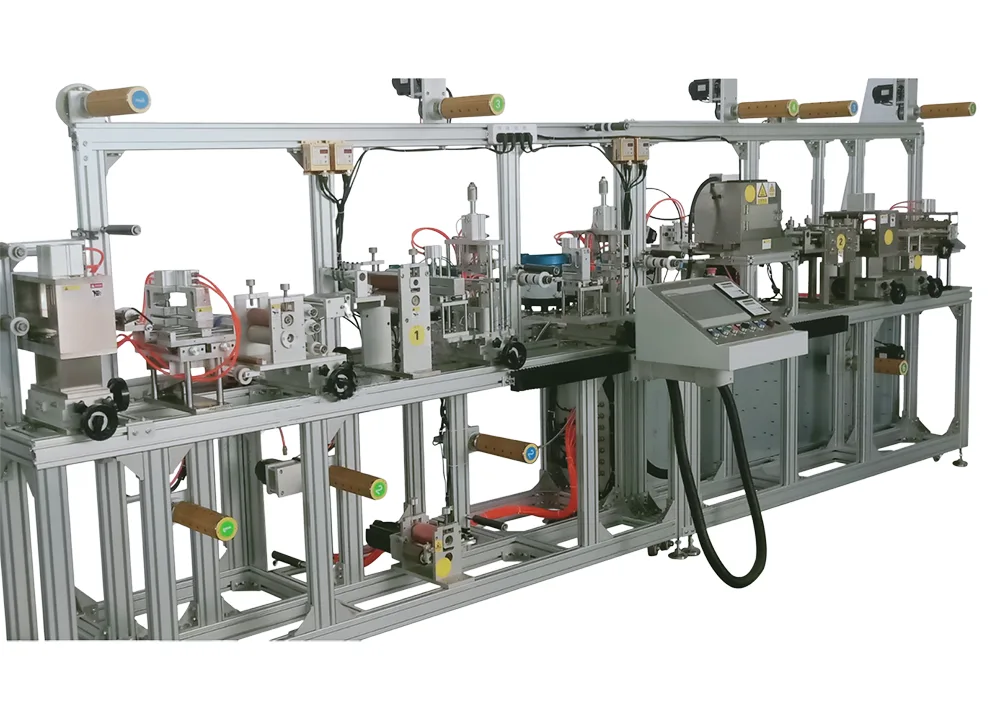

Double-row ECG Electrode Production Machine

This double-row ECG electrode production machine from Junssen is built for high-volume manufacturing of disposable ECG electrodes. Compared to a single-lane machine, it runs two lanes at the same time - double the output with only a little more floor space. To switch to a different electrode size or shape, just change the tooling. The machine is equipped with Delta servo motors, our own snap fastening system, a precision glue dispenser with automatic cleaning, and a patented UV curing unit. The touch screen is movable for easy operation, and it includes functions like technical support, fault alarms, and finished product counting.

Compatible products: Adult/pediatric ECG monitoring electrodes, Holter (dynamic ECG) electrodes, intraoperative monitoring electrodes, neonatal electrodes, etc. Whether you need roll-fed or sheet-fed production, we can customize the machine to your product.

Key advantages

✅ Double-lane production - output doubles

✅ Glue dispenser with auto-clean - no daily manual disassembly

✅ UV lamp automatically retracts when machine stops - prevents heat damage to materials

✅ Snap station designed in-house - easier to troubleshoot and maintain

✅ Fast tooling change - minimal downtime when switching products

Features

Specially designed for the ECG Electrode Production Line factory, high efficiency and stability

•Quick mold change: easily and simply replace molds of different specifications, saving man-hours.

• Delta servo motor: realize high-speed, accurate and stable motion control

• Automatic glue cleaning system: reduce the workload of manual maintenance.

• Self-customized buckle machine: no need for general standard accessories, more stable.

• Curing device: patented, stable product quality.

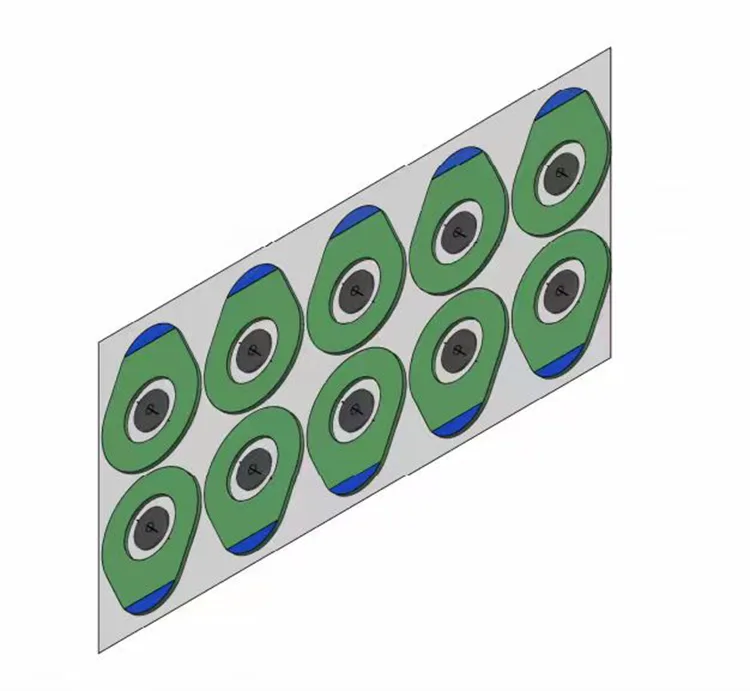

What Products Can It Make?

This Automatic ECG Electrode Making Machine is suitable for the production of various clinical-grade consumables, which can be subdivided into four types of special models:

1. Continuous coil type special strip ECG electrode molding machine;

2. High-speed ECG electrode production equipment suitable for routine monitoring patches for adults and children;

3. Fully integrated disposable ECG fully automatic production line for large-scale supply of hospitals;

4. A customized complete set of equipment for the production of high-end pre-gel ECG electrode products.

Applications

Dual Lane Disposable ECG Electrode Making Machine can mass-produce high-quality disposable ECG electrodes, and the products are widely used in the following medical scenarios:

•Routine ECG examination in hospitals and clinics;

•Real-time monitoring in the emergency room, intensive care unit, coronary heart disease monitoring ward and ambulance;

•Dynamic ECG recorder wearing monitoring and dynamic ECG collection;

•Intraoperative vital sign monitoring and anesthesia supporting monitoring;

•Special pediatric ECG electrodes for newborns and infants are used;

•Sports rehabilitation center, athletes' heart function monitoring;

•Supporting scenarios for remote ECG monitoring of chronic diseases.

This equipment can produce multi-specification electrode products to meet the needs of diversified clinical use.

Specification

Pre-sale and after-sales service

We provide full-process pre-sale and after-sales service to ensure the stable production of your Disposable ECG Electrode products:

Pre-sale service

Engineers provide professional equipment installation guidance and teaching videos

Support online remote operation and overseas offline debugging equipment

After-sales service

The equipment has a one-year warranty and lifetime technical support.

Provide technical assistance at any time through email, telephone and video call

Long-term supply of raw materials and spare parts

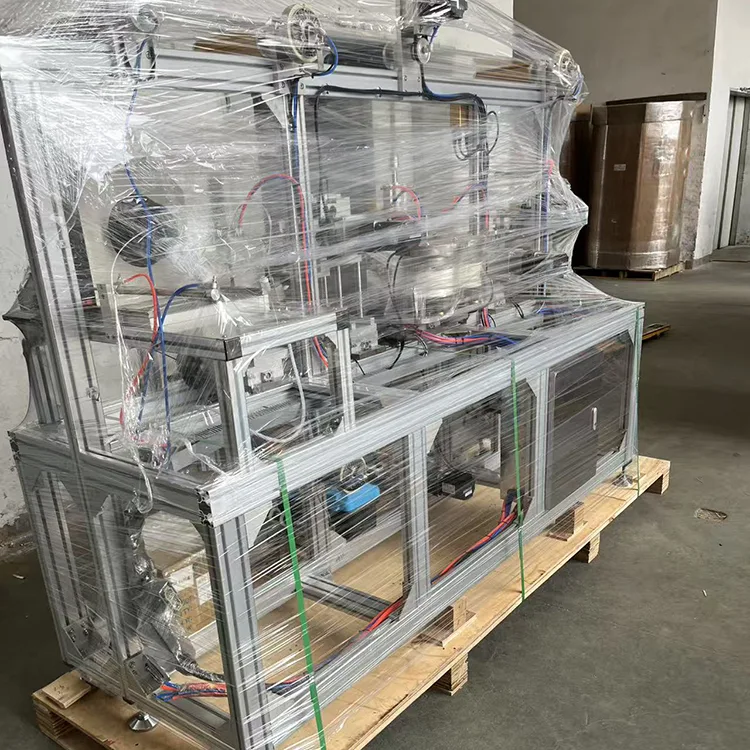

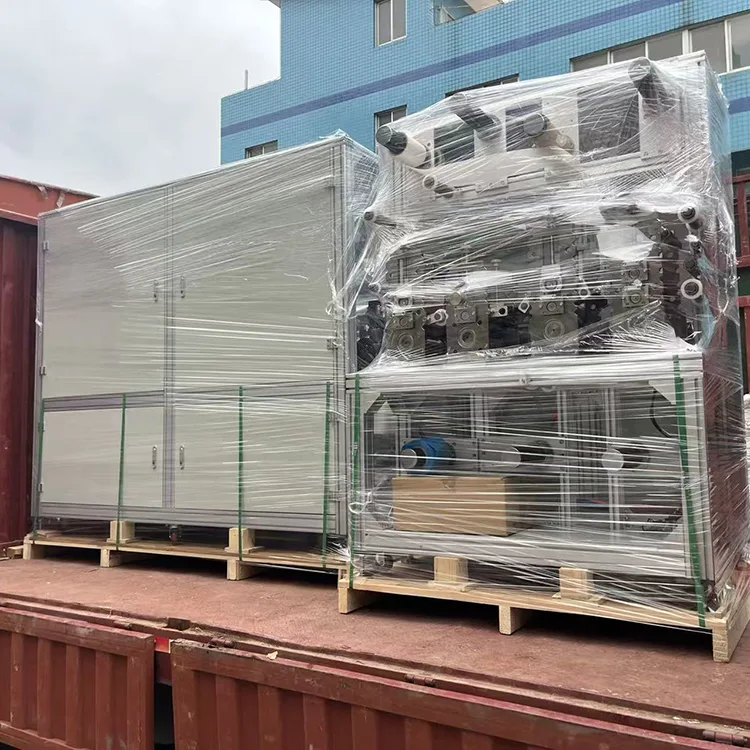

Packing&shipping

All Junssen's equipment and ECG accessories goes through layers of testing and inspection before shipment to ensure the smooth operation of the machine before shipping. The packaging is packed and transported in fumigation-free wooden boxes, which can be customized according to customer requirements to ensure that the whole set of equipment and all accessories can be delivered to the customer intact.

FAQ

Q1: What is the production speed of the equipment?

150–180 pcs/min for ECG Electrode Pads

Q2: What is the length of the equipment?

About 4.6m-5.3m

Q3: Can this equipment produce a variety of products?

Replace cutting dies to produce various products.

Q4: How many people need to operate the equipment?

1 person

Q5: What is the maximum material diameter of this equipment?

600mm

Q6: Is the length of this equipment integrated?

It can be divided into sections.
