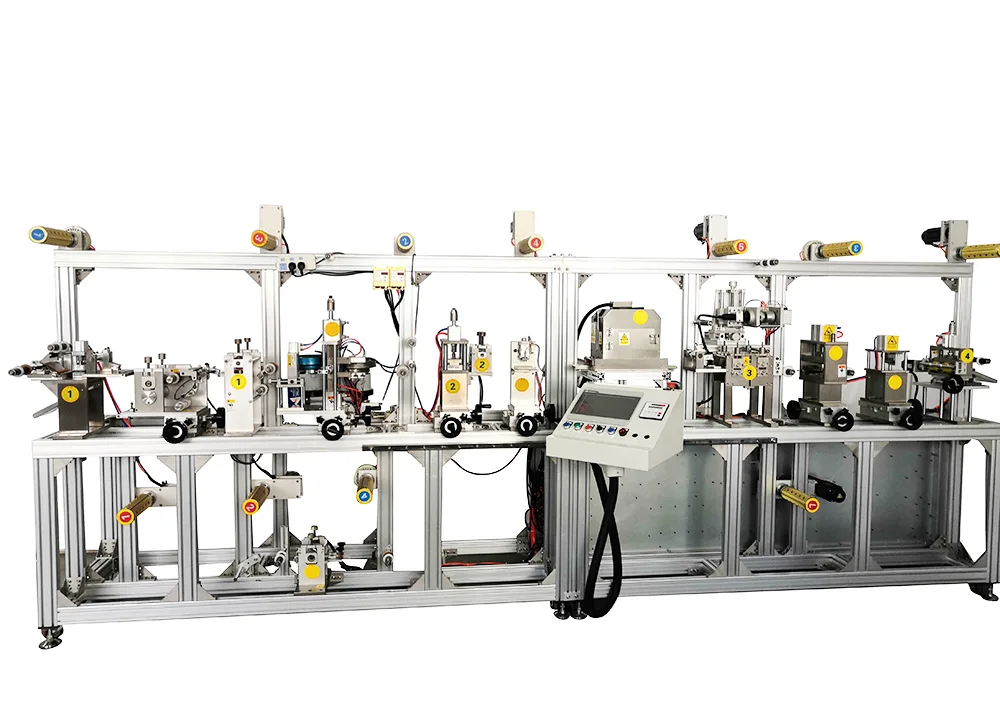

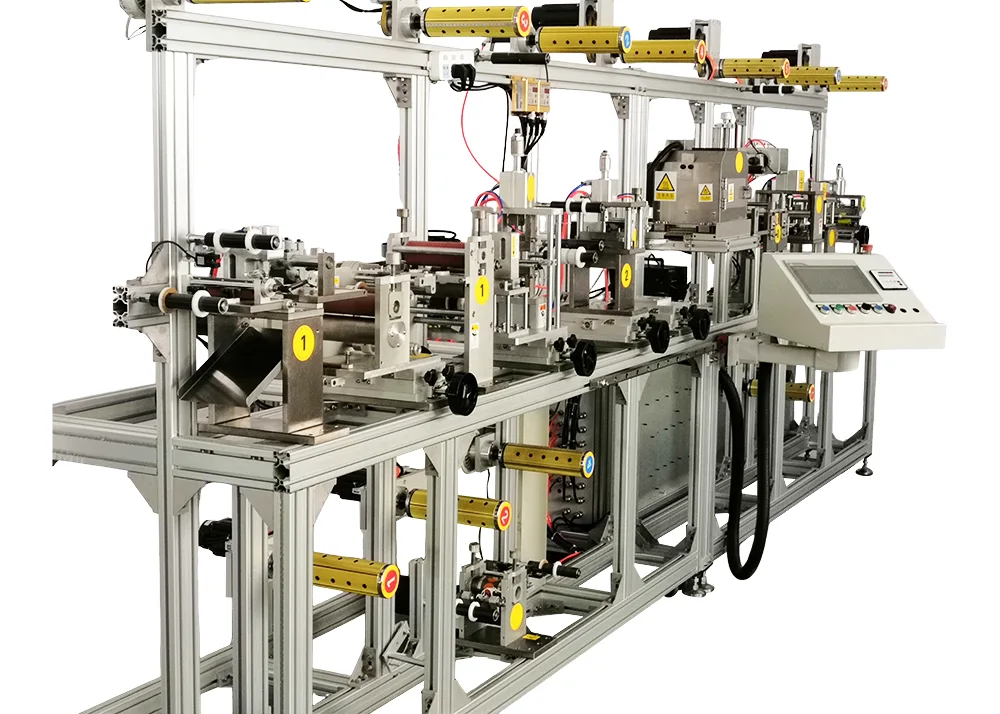

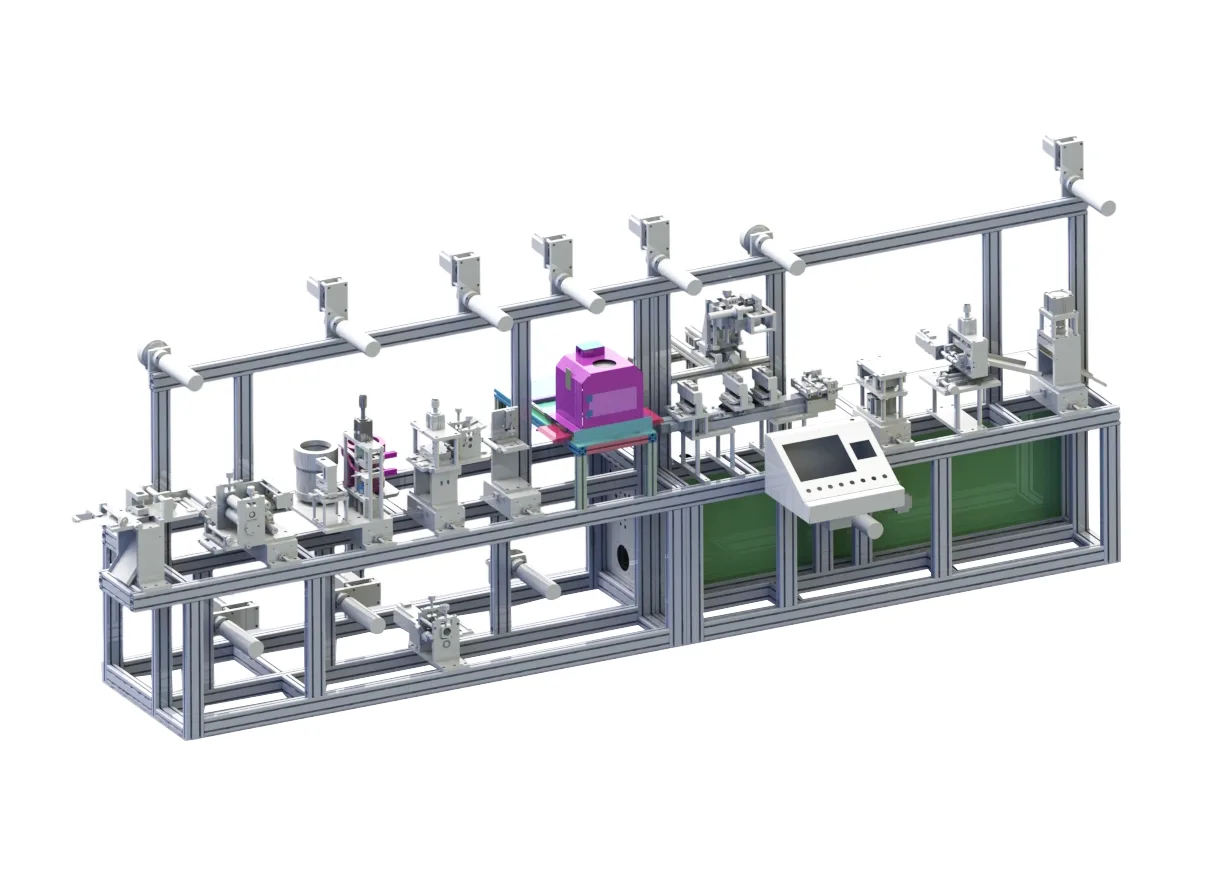

Wet Gel ECG Electrode Production Machine

Wet Gel ECG Electrode Production Machine is integrated for full-process manufacturing of wet gel ECG pads, Junssen is a manufacturer and exporter of ecg electrodes in China. All core stations are coordinated by servo control for smooth continuous running. Each functional unit works independently yet cooperatively, easy to adjust parameters for different electrode specifications. Automatic monitoring is equipped on key feeding stations to lower manual intervention and cut defective rates during mass production. The PET film thermoforming and sponge attaching procedures are optimized exclusively for wet gel products, ensuring stable finished texture of electrode pads.

Product Features

1.The disposable self-adhesive ECG electrode production equipment is an upgraded version based on the ordinary ecg electrode patch equipment. It adds a sponge placement module and is produced in conjunction with a sponge padding layer.

2.The sponge placement mechanism uses a cutting and asynchronous placement method to attach to the label paper; the sponge is actively fed, and the auxiliary sensor is used for real-time detection to prevent the sponge from being pulled too loosely or too tightly.

3.The PET release film has specially designed a bypass for the sponge protrusions. It uses a rapid molding process after heating, and the molded surface will not have defects such as holes or pits.

Wet Gel vs. Solid Gel ECG Electrode Machine - Which One Is Right for You?

Certifications & Patents

Our company's equipment such as Wet Gel ECG Electrode Making Machine has obtained relevant ISO certifications and possesses multiple patents.

Target Applications

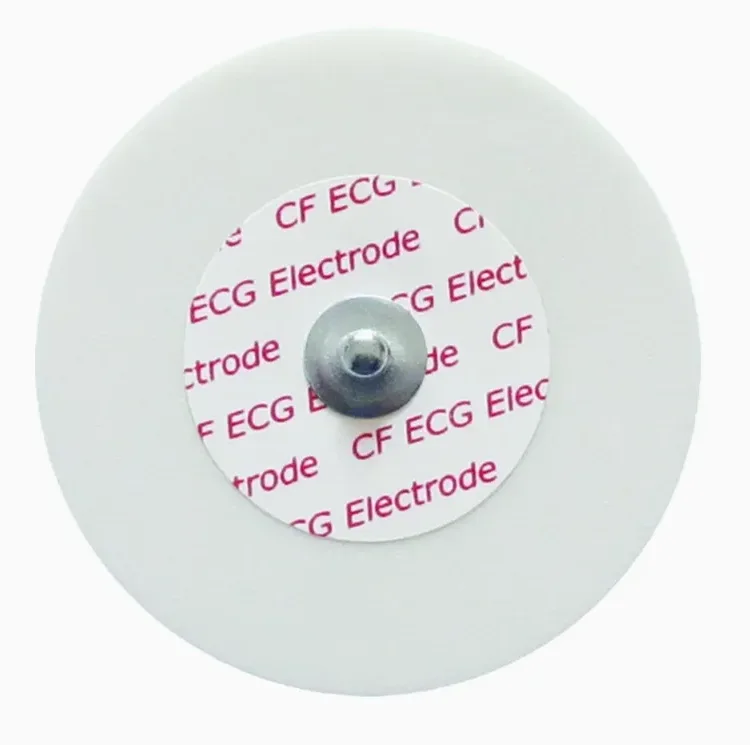

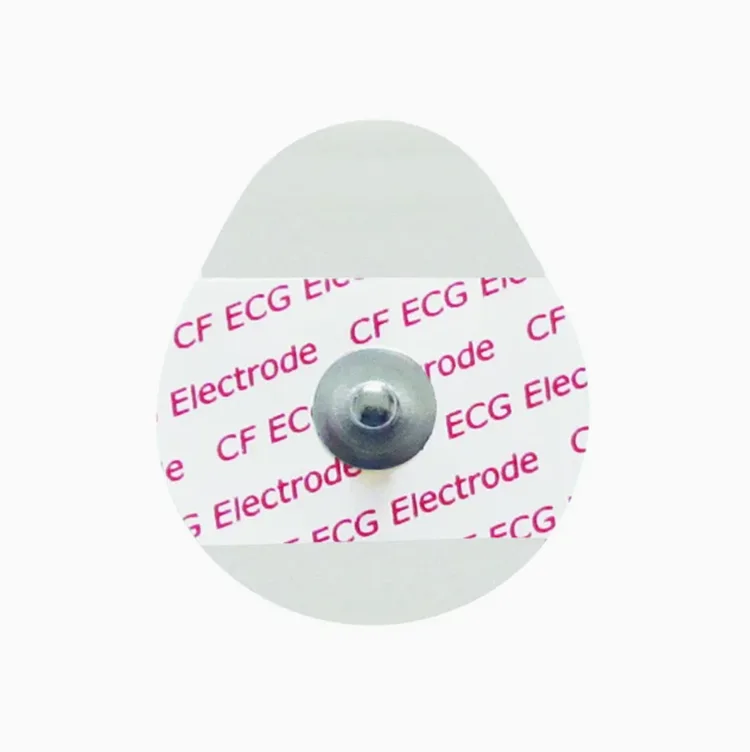

●Dynamic ECG monitoring (Holter electrodes) - long-term wear, high conductivity, stable signal

●Stress test electrodes - strong adhesion during patient movement

●Hospital-grade disposable ECG electrodes - for emergency, ICU, and general monitoring

●Home healthcare electrodes - comfortable sponge padding for extended wear

●OEM projects - custom sizes, shapes, backing materials, and snap configurations

Warranty & After-Sales Support

●12 months warranty against manufacturing defects (excluding consumables).

●Lifetime remote technical support - video call troubleshooting, spare parts identification, software updates.

●Spare parts availability - over 90% of parts in stock, shipped within 3-5 working days.

●Installation & training - On-site commissioning and operator training included (travel expenses at buyer’s cost).

Frequently Asked Questions

1. What is the difference between wet gel and solid gel ECG electrodes?

Wet gel has higher conductivity and better skin adhesion, making it ideal for dynamic ECG (Holter) and long-term monitoring. Solid gel is more common for resting ECG and short-term use. Our machine is specifically optimized for wet gel products.

2. Can the machine produce different sizes of electrodes?

Yes. All styles can be produced by simply changing the molds. Changeover typically takes 20–40 minutes.

3. What raw materials are required?

PET release film, sponge roll material, conductive wet gel (or gel dispensing system), label paper, and electrode snaps (optional).

4. Does the machine have automatic defect detection?

Yes. Key feeding stations include sensors to detect tension abnormalities, material breaks, and misalignment. Optional vision inspection available.

5. Can you customize the machine for our specific electrode design?

Absolutely. Junssen specializes in custom non-standard automated medical equipment. We work with you from design to installation.

6. What is the typical ROI period?

With two-shift operation, customers typically achieve ROI within 8–14 months, depending on output volume and labor cost savings.
