Liquid Gel ECG Electrode Production Machine

Junssen Company is equipped with advanced production and processing equipment, and has obtained several devices such as Liquid Gel ECG Electrode Production Machine, as well as innovative technologies and patents. All the equipment is sold by Factory Direct.
The company offers 24-hour online pre-sales and after-sales services. Satisfying our customers has been our consistent principle over the years.

Send Inquiry

Product Description

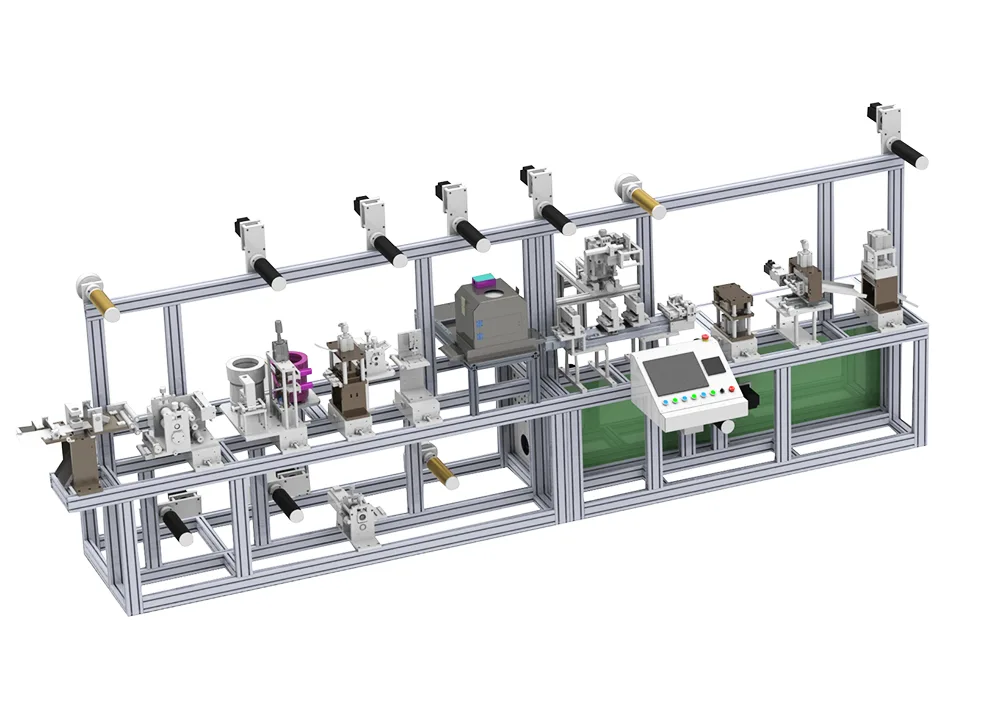

Purchase Junssen's equipment to realize a fully automatic ECG electrode pad production line. This Liquid Gel ECG Electrode Production Machine can automatically complete the operation processes such as substrate bonding, coating conductive adhesive, punching cutting, fastening and packaging. This equipment can automatically complete all the process steps including substrate feeding, hole drilling and waste removal, label paper bonding, sensor riveting, sponge positioning, liquid glue quantification supply, and shape cutting and waste removal.

Equipment parameters

Model	ECG-S80C
Power	8KW
Voltage	380V
Material Feed Width	80mm
Overall Machine Dimensions	4.31.21.9M
Production Speed	80-100pcs/min
Product Shape	Suitable for various shapes, replace the die and cutter to adjust
Packaging Method	Fumigation-free Wooden Case

Core technology

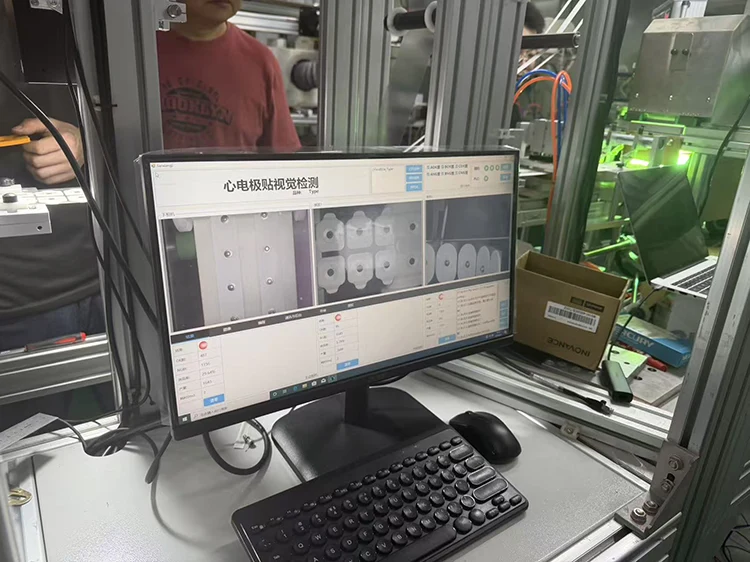

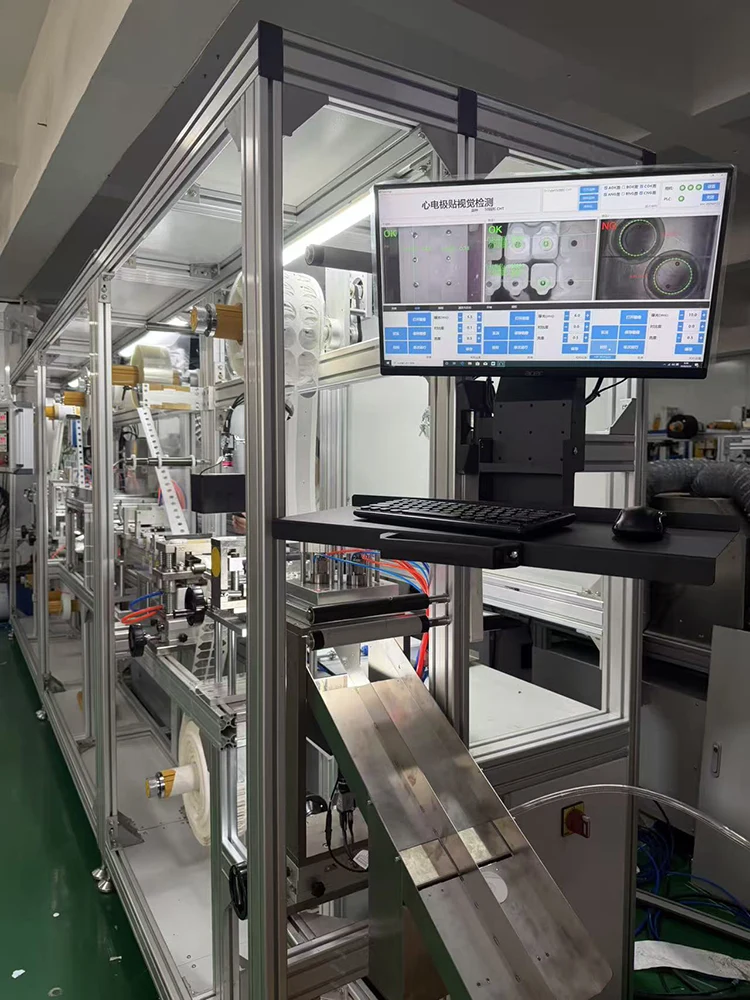

This Liquid Gel ECG Electrode Production Machine independently developed by Junssen adopts high-precision visual inspection core technology integrated into the full-automatic production flow. Real-time camera detection is arranged at key stations including substrate lamination, liquid gel filling, sponge positioning and finished product cutting, which automatically identifies gel shortage, offset lamination, dimensional deviation and surface defects of ECG electrode pads. The visual system feeds abnormal signals back to the servo control system instantly to trigger automatic correction or waste rejection, effectively eliminating defective products in advance, greatly lowering manual inspection pressure and guaranteeing uniform quality of mass-produced hydrogel ECG electrodes.

Liquid Gel ECG Electrode Production Machine

Workshop

When building our Hydrogel ECG Electrode Production Machine, we maintain very strict process management. Every link including research, manufacturing and assembly follows fixed operation rules, so we can fully keep product quality under control.
