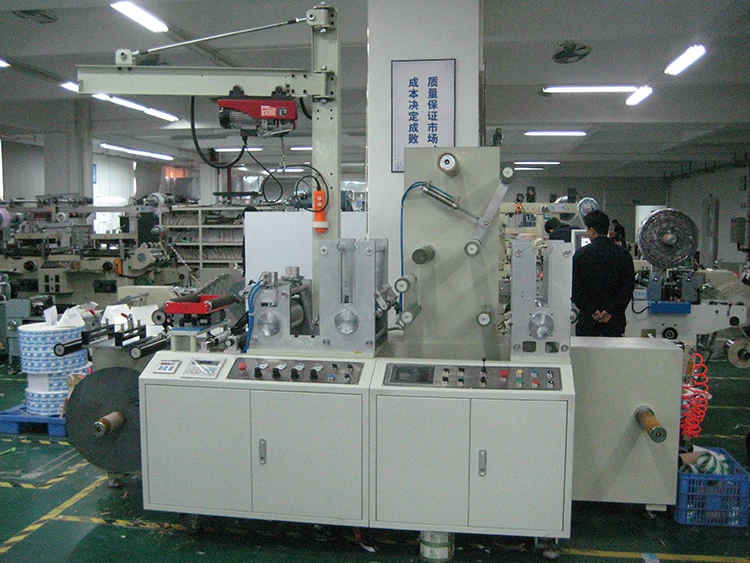

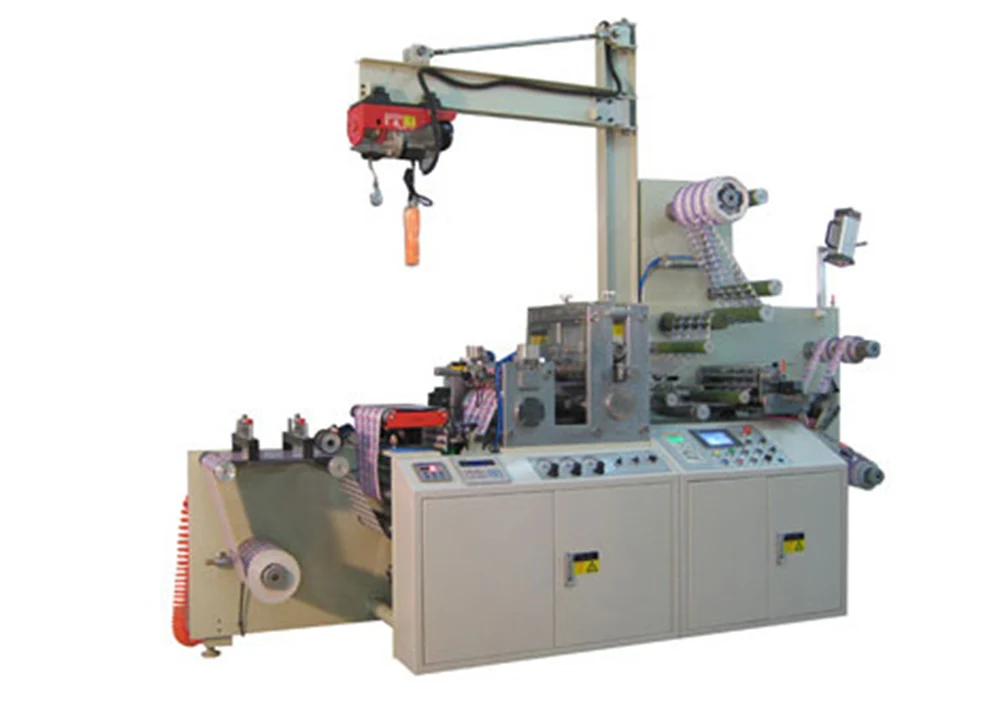

Fully Automatic Adhesive Die Cutting Machine

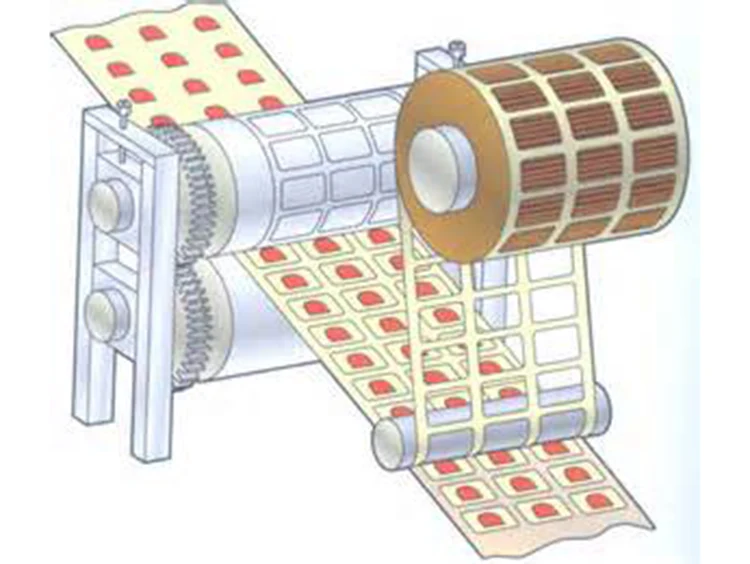

Junssen is a reliable manufacturer. The Fully Automatic Adhesive Die Cutting Machine is equipped with an optical eye tracking function, the operating logic of a self-adhesive die-cutting machine can be summarized in three core steps: feeding, die-cutting, and output of finished products.It is suitable for the die-cutting processing of materials such as protective films, single-sided and double-sided adhesives, copper and aluminum foils, foam, and adhesive products.

Configuration

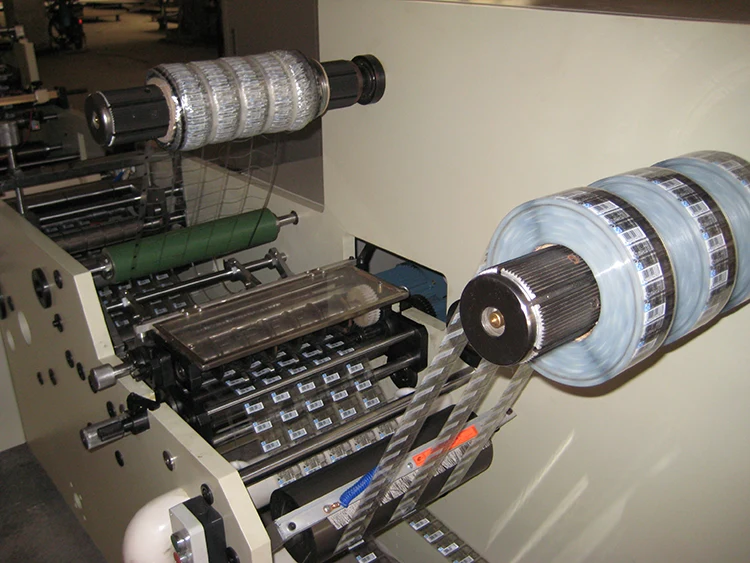

Feeding Unit

The Fully Auto Label Converting Line is equipped with a cantilever feeding rack and tension control system. The standard feeding roll diameter is 300-500mm, suitable for raw materials with a width of 100-350mm.

Tension Control System

The standard configuration uses a magnetic powder tension controller to adjust feeding tension according to different material thicknesses, preventing stretching, deformation, or loose feeding. High-end models can be equipped with servo motor-driven feeding and tension sensors for automatic tension adjustment, suitable for processing ultra-thin foam, release paper, and other sensitive materials.

Deviation Correction System

Most models are equipped with automatic deviation correction devices using photoelectric or ultrasonic sensors to detect material position changes. The motor-driven adjustment system corrects feeding deviation in real time, ensuring accurate die-cutting alignment and stable production quality.

Performance

● Dual-system: The High Speed Sticker Die Cutting Machine not only can complete the one-time processing of complex products normally, but also can split the knife holder according to different requirements and simultaneously complete the processing of two different products.

● Repeated color correction: Effective in eliminating cumulative errors during the processing of printed products, products with unequal spacing (synthetic graphite), etc.

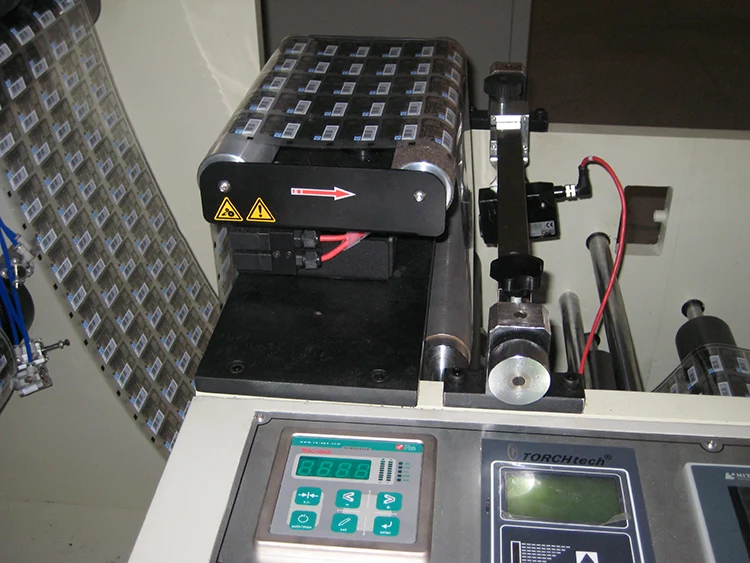

● Online detection of CCD size: Using a high-speed CCD camera, the size of the product is monitored in real time. The size of the product is detected online, and defective products are identified simultaneously.

● Order storage: It can store 600 sets of order data.

Specification

Applicable processing materials

The High Precision Rotary Label Cutter can process most types of roll materials and non-metallic materials. Commonly used compatible materials include:

1. Paper-based: double-sided adhesive, self-adhesive, release paper, label paper, plastic film, etc.;

2. Foam-based: EVA foam, PU foam, PE foam, acrylic foam, etc. (electronic buffer foam);

3. Film-based: PET film, PVC film, PE film, OPP film, diffusion film, brightening film, etc. (optical film materials);

4. Rubber/foam-based: silicone pads, rubber sealing rings, foam, sealing gaskets, etc.;

5. Others: conductive fabric, non-woven fabric, dust-proof net, medical breathable tape, flexible circuit boards, etc.

FAQ

1. What is a Fully Automatic Adhesive Die Cutting Machine used for?

A Fully Automatic Adhesive Die Cutting Machine is designed for automatic processing of adhesive materials, including labels, stickers, films, tapes, and customized die-cut products. It integrates material feeding, positioning, cutting, and waste removal processes to improve production efficiency.

2. What adhesive materials can this machine process?

The equipment can handle various roll-fed adhesive materials, such as self-adhesive paper, PET film, PVC, double-sided tape, foam adhesive, protective film, and other flexible materials used in industrial applications.

3. What are the advantages of a fully automatic die cutting process?

The automated production process reduces manual operations, improves processing consistency, and helps maintain stable output. It also reduces material waste and improves overall production efficiency compared with semi-automatic or manual processing methods.

4. Can the machine support different product sizes and shapes?

Yes. The equipment can be configured with different molds and cutting tools to produce various shapes, sizes, and customized adhesive products according to customer requirements.

5. How does the machine ensure cutting accuracy during production?

The machine uses precise feeding control, stable tension adjustment, and accurate positioning systems to maintain consistent cutting performance. Optional deviation correction and servo control systems can further improve processing stability.

6. Is this equipment easy to operate and maintain?

Yes. The machine is designed with an intuitive control system and practical structure, making operation, parameter adjustment, and routine maintenance more convenient. Professional technical support is also available to help ensure long-term stable operation.

7. Can Junssen customize the equipment according to production requirements?

Yes. Junssen provides customized solutions based on different materials, product structures, production capacity requirements, and application scenarios, including equipment configuration, functional upgrades, and technical support.
