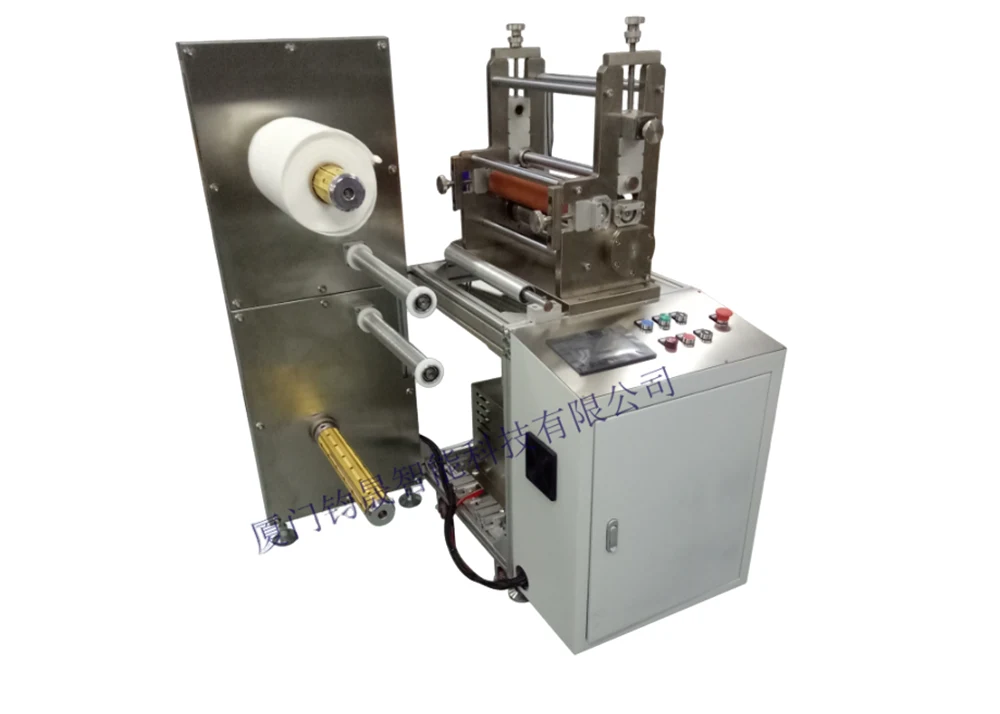

Small Rotary Die Cutting Machine

Junssen's Small Rotary Die Cutting Machine, abbreviated as the rotary machine, is commonly known as multi-station rotary die cutting machine, round knife machine, roller cutter machine or round knife die cutting machine. It performs die cutting by continuously rotating the round knife. It is one of the most efficient equipment in our factory die cutting machines, and the die-cut products are widely used in fields such as mobile phones, computers, LCD monitors, digital cameras, and LCD backlight sources.

Technical Specifications

The technical specifications of the Roll to Roll Rotary Die Cutter are as follows. More detailed parameters can be customized according to customer requirements:

Selection Key Points

When users make a selection, they need to determine the equipment configuration based on their production needs. The core points to focus on are as follows:

·Determine the maximum processing width: Select the equipment width based on the width of the conventional processing products. Usually, a margin of 20 to 50 millimeters needs to be reserved. For example, if processing products with a 300mm width, a 320mm or 350mm width equipment can be chosen.

·Determine the number of workstations: If only processing simple single-layer products, a single workstation equipment can be selected, which is more cost-effective; if processing multi-layer composite materials for electronic accessories, priority should be given to multi-workstation equipment, which can be one-time formed and reduce processes, improving accuracy.

·Precision requirements: The processing of electronic accessories requires a precision of±0.05mm or less. High-precision servo-controlled equipment must be selected. For the processing of ordinary packaging labels, a precision of±0.2mm is sufficient, and an economic stepper equipment can meet the requirements.

·Automation configuration: For large-scale production, priority should be given to Bench top Rotary Die Cutter, automatic alignment, and automatic tension configuration to reduce production changeover time and improve production efficiency; for small-batch and multi-variety production, manual adjustment configuration can be selected to reduce equipment procurement costs.

Advantages

1. High efficiency: The rotary knife die-cutting machine uses a rotating blade for cutting, which is fast and highly efficient, suitable for mass production.

2. High precision: The cutting precision of the rotary knife die-cutting machine is high. Especially for products with high requirements, such as mobile phone films and electronic product shells, the precision requirements are high, and the rotary knife die-cutting machine can meet these requirements.

3. Multi-functionality: The Small Cylinder Label Cutting Machine can cut various materials, such as paper, leather, fabric, film, etc., and is widely used in various industries, such as packaging, footwear manufacturing, clothing, printing, etc.

4. Low operating cost: The equipment has stable mechanical structure, low failure rate during long-term operation, and reduces maintenance and replacement costs of wearing parts. In addition, it supports continuous roll-to-roll processing, which greatly reduces manual intervention and cuts down overall labor input for production.

5. Low space requirement: As a small-sized rotary die cutting machine, it does not need large installation space, which fits well with small and medium production sites, and helps enterprises save workshop space costs.

6. Flexible customization: It can adjust processing parameters and match different auxiliary devices according to the actual production needs of users, which can adapt to diverse customized processing needs and meet the changing production requirements of different enterprises.

What to pay attention to during operation

.‌Tension control‌: Control the tension of each feeding and discharging wheel properly. This is a key factor affecting the stability of Mini Roll-to-Roll Press processing.

.‌Tool alignment‌: For multiple tools, consider the alignment dimensions. Usually, this is accomplished by changing the rotation speed of one of the tools.

.‌Material fixation‌: For materials that are prone to sliding, use a guard plate to hold them in place to prevent lateral movement. For materials with glue, do not expose the glue when discharging.

.‌Auxiliary accessories‌: In areas where materials are prone to wrinkling or unstable, add auxiliary rollers. Pay attention to the appropriate angle.

The equipment adopts a simple and intuitive operation interface, which reduces the learning difficulty for operators, shortens the pre-job training cycle, and allows the production team to get started quickly, effectively avoiding production delays caused by personnel replacement. At the same time, the complete safety protection design is equipped with emergency stop devices and safety baffles, which can effectively avoid accidental injuries during the operation process and guarantee the personal safety of operators.

FAQ

Q1: What materials can a Small Rotary Die Cutting Machine process?

This machine can process various flexible materials, including adhesive tapes, films, labels, foam, PET, EVA, and other precision die-cutting materials.

Q2: What industries use this type of die cutting machine?

It is widely used in electronics, automotive, medical, packaging, and consumer products industries for precision cutting applications.

Q3: What are the advantages of the Small Rotary Die Cutting Machine?

It offers high cutting accuracy, stable operation, fast processing speed, and reduced material waste, making it suitable for efficient production.

Q4: Can the machine be customized for different products?

Yes, the cutting rollers, tooling design, and machine settings can be customized according to different material types, shapes, and production requirements.

Q5: Is this machine suitable for small-batch production?

Yes, it is ideal for small and medium-volume production, sample development, and customized die-cutting projects that require flexible processing.

Q6: How easy is the machine to operate and maintain?

The machine features a user-friendly design with simple operation and convenient maintenance, helping users improve production efficiency and reduce downtime.
