Single Row ECG Electrode Production Machine

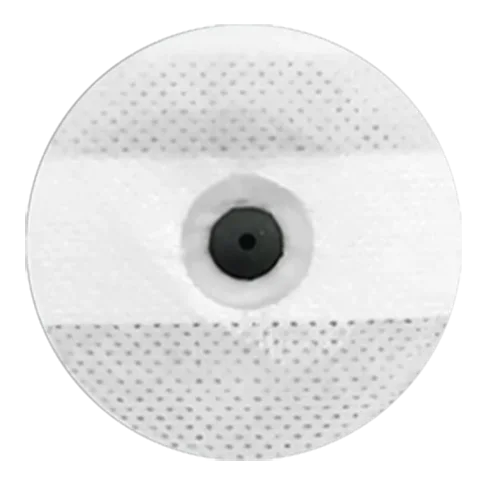

The Single Row ECG Electrode Production Machine is one of China-based Junssen’s core R&D and manufacturing equipment.This machine is widely adopted for producing ECG electrode pads, stress test electrode pads, neonatal ECG electrode pads, medical dressings and patches etc.It is one of the most mainstream and basic core models in the ECG electrode manufacturing industry.

Compared with multi-row and other production machines, this single-row equipment boasts outstanding strengths including flexible product changeover, precise tension control and simpler mold configurations.Please feel free to contact us anytime for inquiries.

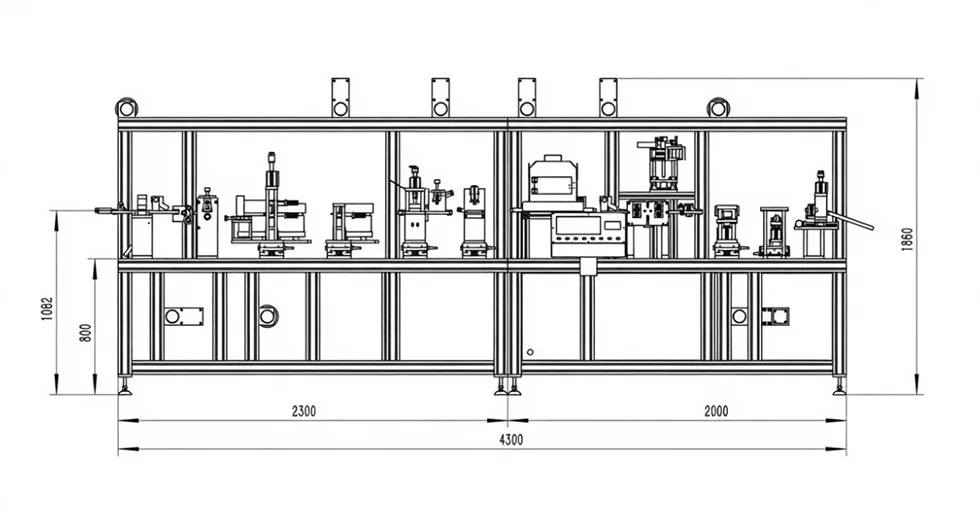

Specification

Core Advantage:

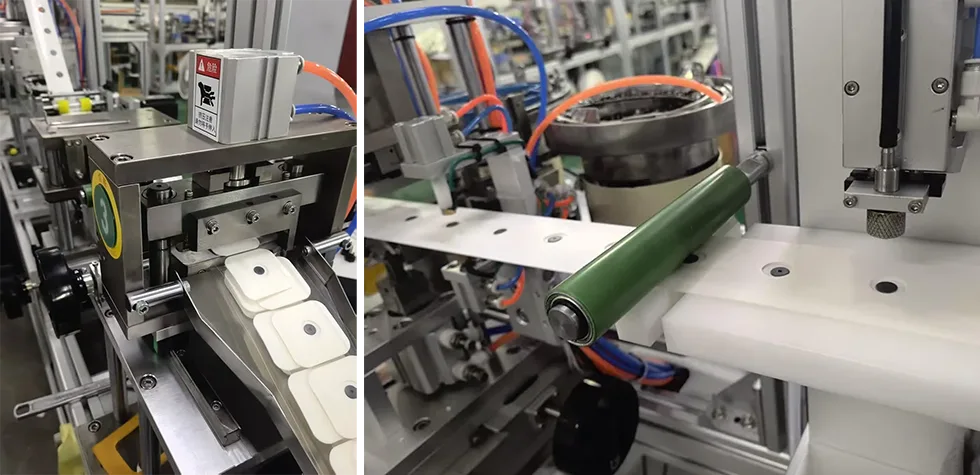

1. The ECG Electrode Production Line adopts servo electrodes for winding, which maintains stable tension and makes it less likely to break when collecting waste materials. Ordinary motors are prone to cracking and deforming;

2. The die-cutting of electrode pads uses wooden knife molds, which has a lower cost compared to circular knife molds and a shorter processing cycle;

3. The semi-cutting process allows for convenient and precise adjustment of the depth. It only cuts the surface release film and adds a limit device, making it more stable and preventing it from cutting through the finished product;

4. The full-cutting process uses molds, which have a long service life. The internal structure of the molds is reserved with snap-fit structures to avoid cutting into the pins, reducing the defect rate;

5. The buckle mechanism uses a vibration disc for feeding, with an open structure. It is convenient for observing whether the buckle is stuck or missing, and saves labor costs for placing the buckle.

Production Details:

ECG Electrode Manufacturing Equipment is suitable for various electrode substrates, such as non-woven fabric, foam, etc.; it is compatible with two different conductive printing layers, silver paste and carbon paste, and supports the mass production of different specifications of electrode pads including circular, square, elliptical, and irregular-shaped monitoring ECG electrodes, as well as exercise load test electrodes.

Product Process:

The general production process of the EKG Electrode Machine is as follows:

Type A

Punching → Round Long Label Lamination → Snap Pressing → Glue Dispensing → UV Curing → Half Cutting → Dotted Line Cutting → Full Cutting

Type B

Punching → Round Long Label Lamination → Snap Pressing → Foam Lamination → Glue Dispensing → Blister Avoidance Cap Attaching → Full Cutting

FAQ:

1.What is the speed of the equipment?

150-180 pieces per minute

2.What is the length of the equipment?

Approximately 4.6-5.3 m

3.Can the production product specifications be changed?

Yes, according to customer requirements

4.How many people operate the equipment?

One person is sufficient

5.What is the maximum diameter of the material?

600mm

6.Is the equipment length continuous or can it be segmented?

It can be divided into sections.
